Printing Method

Thermal Line

Resolution

8 dots/mm, 576 dots/line

Effective Printing Width

72mm

Printing Speed

80mm/s

Character Set

ASCII,GB18030(Chinese), BIG5,Codepage

Print Font

ANK: 12 x 24 Chinese: 24 x 24

Self-defined Character

Yes

Barcodes

1D:UPC-A, UPC-E, EAN-13, EAN-8,CODE39,
       ITF25 ,CODABAR, CODE93, CODE128
       2D:PDF417, QR code, DATA Matrix

Graphic

Support bitmap downloading

SDK

Symbian/Windows Mobile/Windows CE/Blackberry/Android

Driver

Windows XP/Windows Vista/Windows 7/Windows 8/ Windows 10

Paper End Sensor

Yes

Black Mark Location

Yes

Auto Sleeping

Yes

Buzzer

Yes

Interface

IOS T9-BT: USB+Bluetooth T9-U: USB

Battery

DC7.4V/1.5A rechargeable Li-ion

Charger

DC9V/2A

TPH

50km

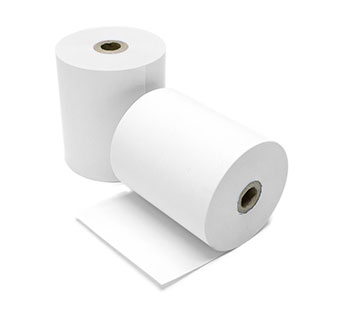

Paper Type

Thermal paper

Paper Width

79.5± 0.5mm

Paper Thickness

0.06 to 0.08mm

Paper Roll Diameter

40mm(Max.)

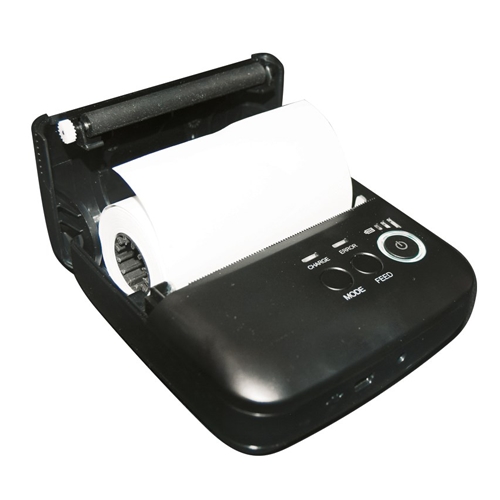

Paper Supply Method

Drop-in Easy loading

Paper Cutting Method

Manual

Operating Temp/Humidity

0-50°C/10%-80%

Storage Temp/Humidity

-20-60°C / 10%-90%

Dimension (LxWxH)

103 x 99 x 46mm

Weight

254g
