Printing Method

Thermal Line

Resolution

8dots/mm, 384dots/line

Effective Printing Width

48mm

Printing Speed

100mm/s

Character Set

ASCII, GB18030(Chinese), BIG5, Codepage

Print Font

Font A: 12*24          Font B: 9*17

Self-defined Character

YES

Barcode

1D: UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF25, CODEBAR, CODE93, CODE128
       2D: PDF417, QR CODE, DATAMATRIX

Graphic

Support bitmap downloading

Paper End Sensor

YES

Black Mark Location

YES

Overheating Protection

YES

Driver

Windows XP/Vista/7/8/8.1/10, Linux, OPOS

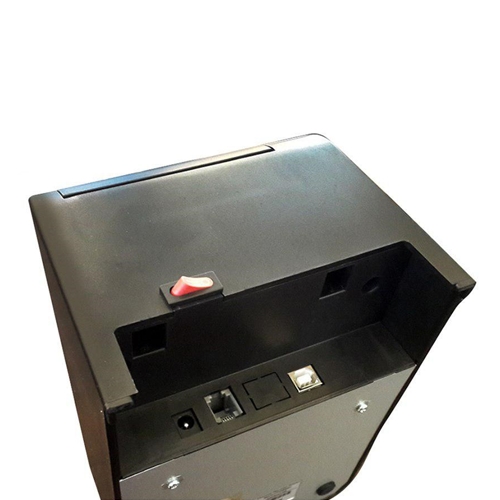

Interface

RS-232/Parallel/USB/USB+Ethernet/USB+Bluetooth

Cash drawer control

DC12V,1A, 6PIN RJ-11Socket

Power Supply (Adapter)

AC100 ~240V ± 10%(include) DC 12V, 2A

TPH

60km

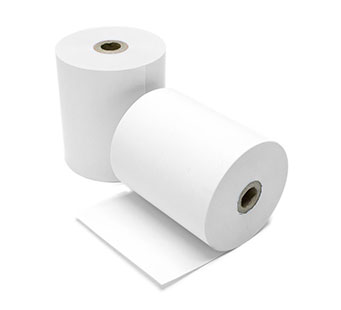

Paper Type

Thermal paper

Paper Width

57.5± 0.5mm

Paper Thickness

0.06 to 0.08mm

Paper Roll Diameter

80mm(Max.)

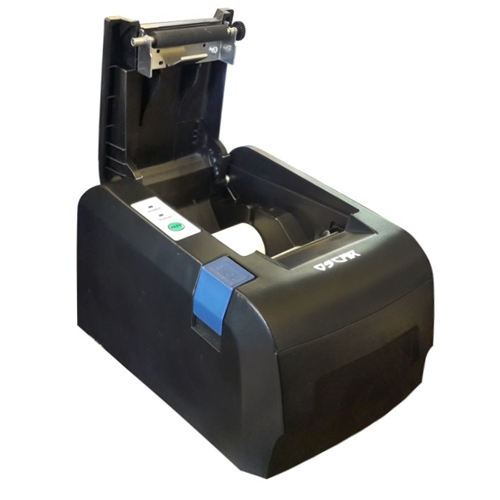

Paper Supply Method

Drop-in Easy loading

Paper Cutting Method

Manual

Operating Temp/Humidity

0-50°C/10%-80%

Storage Temp/Humidity

-20-60°C / 10%-90%

Dimension (LxWxH)

138 x 216 x125 mm

Weight

898g
